QUICKLYNKS® T31 - OBD2 Diagnostic Scanner - Professional
$59.95 AUD
QUICKLYNKS® T31 Professional OBD2 Diagnostic Scanner Tool

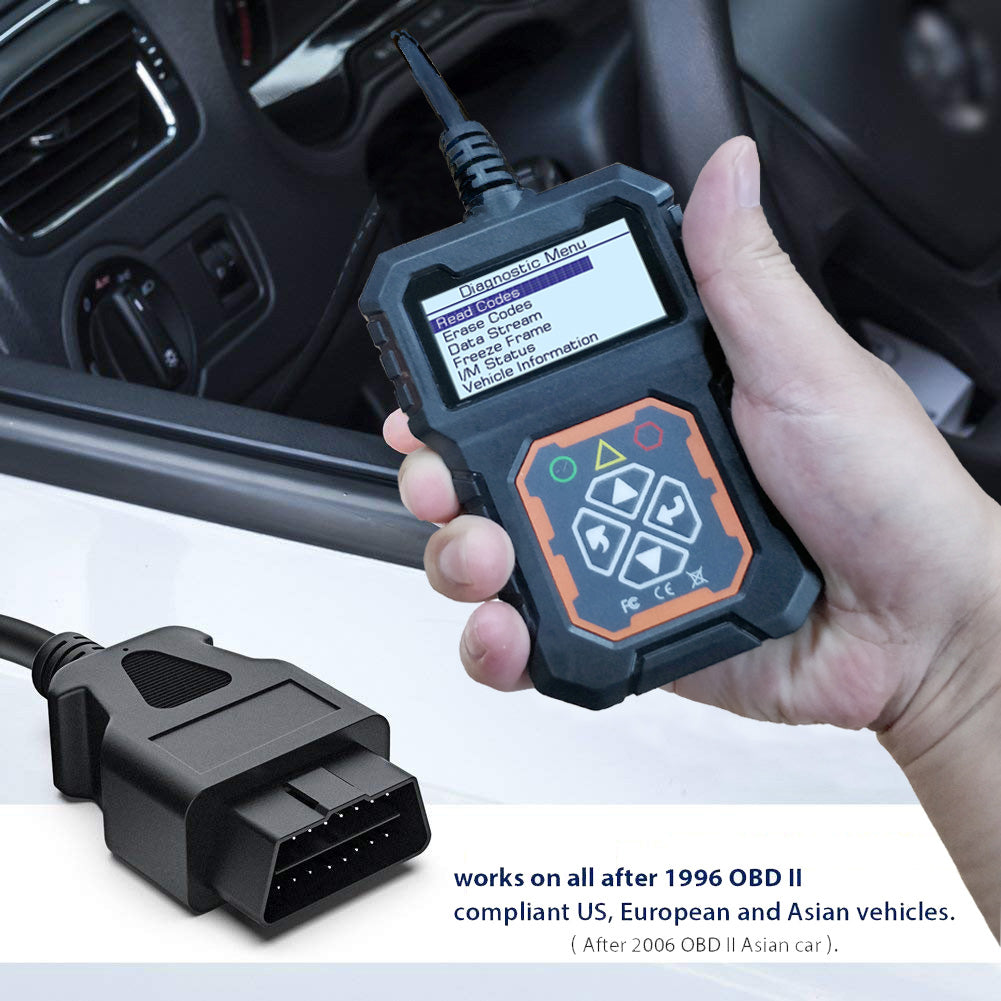

- Plugs directly into OBD port found on vehicles since 1996
- Read Trouble Codes
- Erase Trouble Codes
- I/M Readiness
- View Real-Time Data Streams
- View Freeze Frame
- View Vehicle Info
- Professional Codes Analysis Database
- Supports all OBD2 Protocols
Australian Stock
Usually despatched same day via Australia Post
SPECIFICATIONS
Connector: OBDII
Operating Voltage: 8V to 25V
Operating Current: 52mA (max)
Operating Temperature: -20ºC to 70ºC
Display: 128x64 dot matrix monochrome with backlight

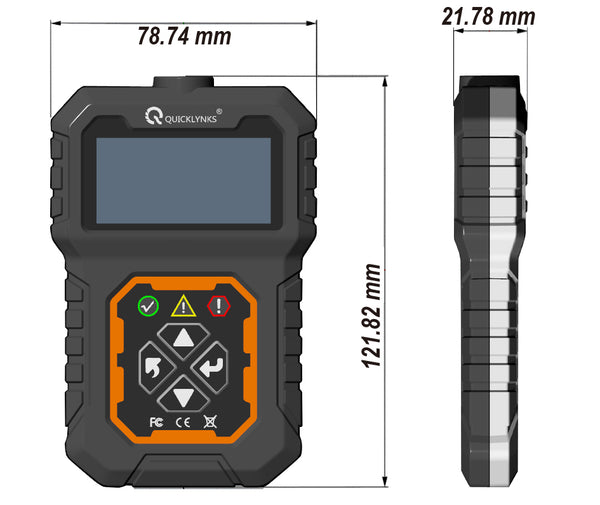

Dimensions: 115x70x20mm
Supports Protocols:
SAE J1850 VPW
SAE J850 PWM
ISO 9141-2
ISO 14230-4 (KWP FAST)
ISO 14230-4 (KWP 5BAUD)
IOS 15765-4 (CAN 11/250)
ISO 15765-4 (CAN 11/500)
ISO 15765-4 (CAN 29/250)
ISO 15765-4 (CAN 29/500)
Compliance: CE, FCC, RoHS
